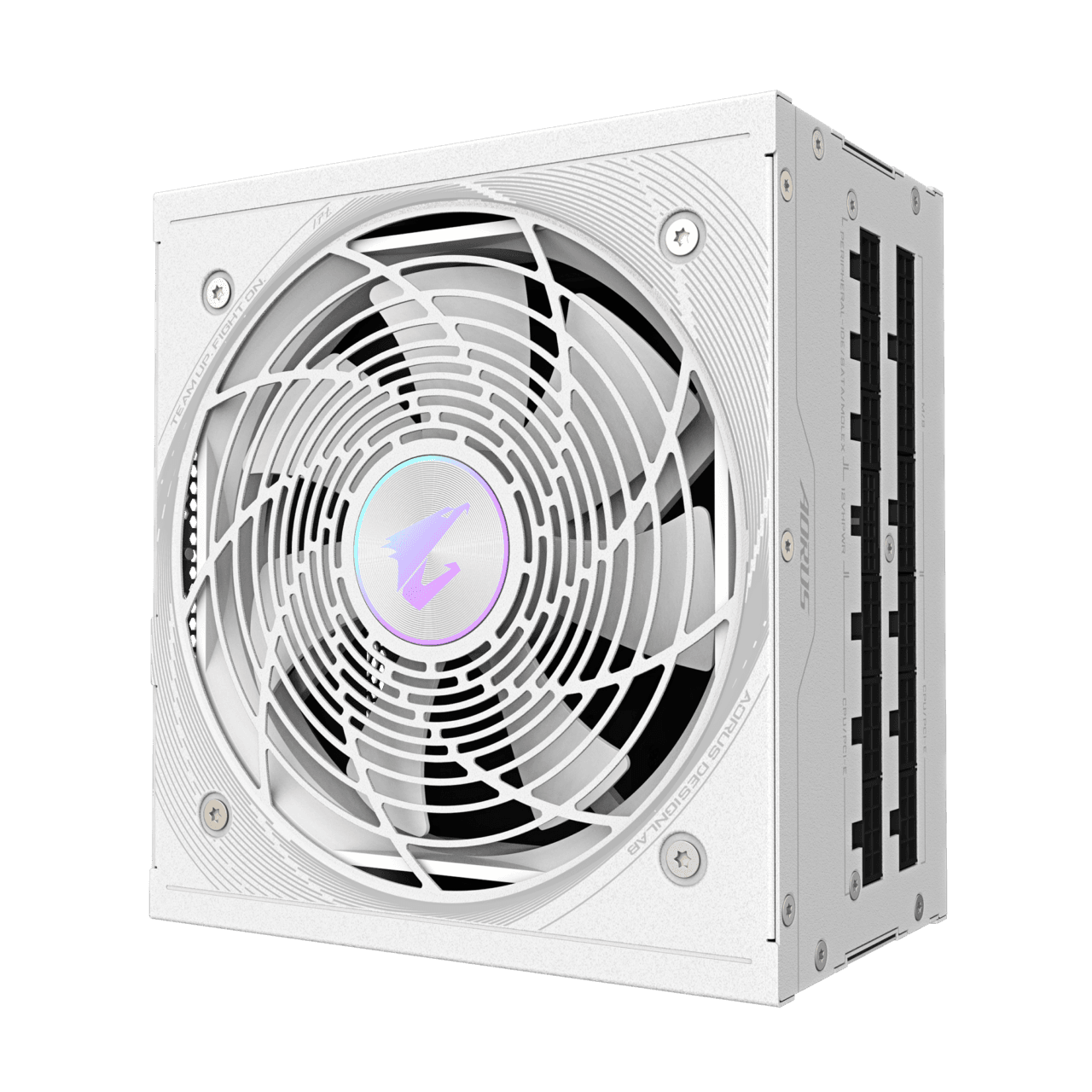

AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 ICE
7,199EGP
KEY FEATURE
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty (Adjusted according to different regions)
Model |
GP-AE850PM PG5 ICE |
Type |
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
PFC |
Active PFC (>0.9 typical) |
Input Voltage |
100-240 Vac (full range) |
Input Current |
12-6A |
Input Frequency |
60-50 Hz |
Output Capacity |
850W |
Dimension |
150 x 140 x 86mm |
Fan Type |
120mm Fluid Dynamic Bearing (FDB) Fan |
80 PLUS |
Platinum |
Efficiency |
92% at typical load |
MTBF |
>100,000 hours |
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal |
100-150ms |
Hold Up Time |
>16ms |
Cable Type |
Flat, All white |
Connectors |
ATX/MB 20+4 Pin x 1 : 650mm*1
|
Additional information
| Brands | AORUS, GIGABYTE |
|---|
