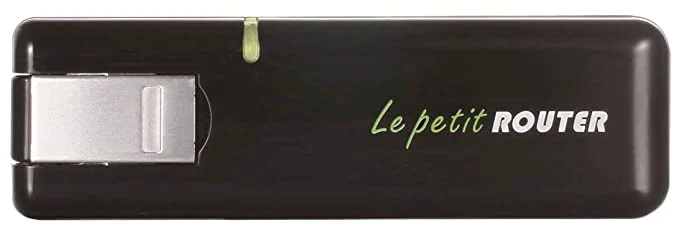

D-Link DWR-510 Mini 3G 7.2 Mbps HSUPA USB Router

Minimum System Requirements

1. Microsoft® Windows 7/Vista/XP SP2

2. Mac OS X (10.4 or above)

3. Intel or AMD CPU 500 MHz or higher

4. 128 MB RAM or greater

5. 50 MB available disk space

6. Microsoft® Internet Explorer 6 or above or Mozilla® FireFox 2.0 or above

GSM BAND (GSM/GPRS/EDGE)

1. 850/900/1800/1900 MHz

2. Power Class 4 (850/900 MHz)

3. Power Class 1 (1800/1900 MHz)

DUAL-BAND FOR UMTS/HSDPA/HSUPA1

1. 850/1900 MHz

2. 850/2100 MHz

3. 900/2100 MHz

4. Power Class 3 (+24 dBm)

DATA RATES

• DL: 7.2 Mbps

• UL: 5.76 Mbps

STANDARDS

1. 802.11b

2. 802.11g

3. N150

ANTENNA

• Internal 3G and Wi-Fi antenna

INTERFACE SUPPORT

• USB 2.0

SMS

• Circuit-switched (GSM)

SMS MANAGER

1. SMS stored on SIM card

2. New SMS notifications via Connection Manager

3. Compose/Send/Read/Delete S

PHONEBOOK

1. New contact, new group, view/delete/edit contacts, send/save

2. messages

USIM SLOT

• Standard 6-Pin SIM card interface

PLUG AND PLAY

• Automatic software/driver installation

CONNECTION STATUS

1. Network name, signal strength, transport/receive rate,

2. connected time, amount of data sent/received

Certifications

1. CE

2. FCC

DIMENSIONS (L x W x H)

• 90 x 28 x 11 mm (3.5 x 1.1 x 0.4 inches)

Operating Temperature

• -10 to 55 ˚C (14 to 131 ˚F)
