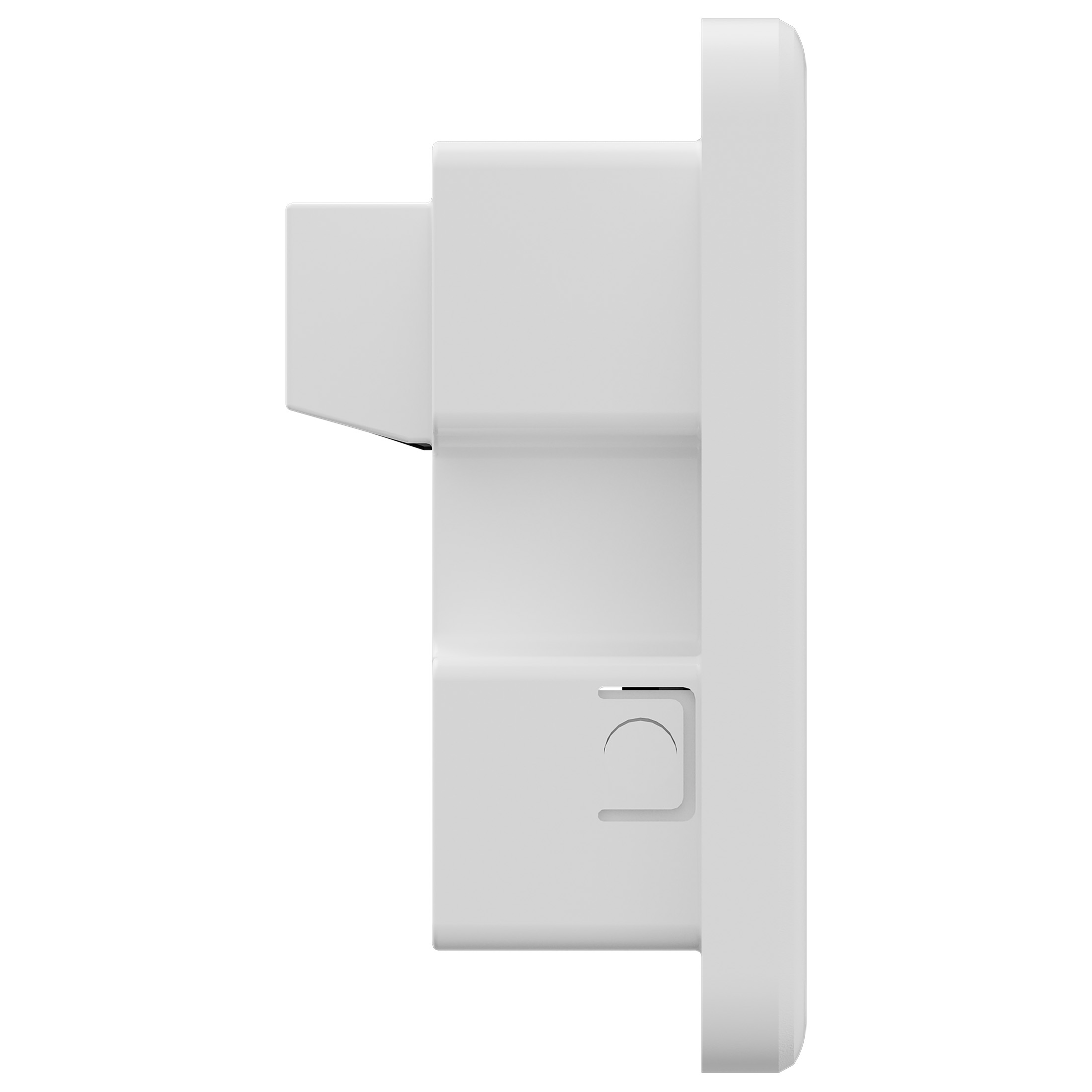

Huawei eKitEngine AP160 Access Point
3,749EGP
- Wi-Fi 6 (802.11ax) standard
- MU-MIMO
- High-speed access
- High Density Boost technology
- Wired and wireless dual security guarantee
- Automatic radio calibration
- Cloud-based management
- Deployment and O&M through HUAWEI eKit app
Installation Type |
Junction Box (86 mm) |
Dimensions without packaging (H x W x D) [mm(in.)] |
86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] |
98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
Weight without packaging [kg(lb)] |
0.14 kg (0.31 lb) |
Weight with packaging [kg(lb)] |
0.24 kg (0.53 lb) |
Storage |
NAND Flash 256 MB |
Console port |
None |
Maximum power consumption [W] |
9.1 W |
Maximum heat dissipation [BTU/hour] |
29.5 BTU/hour |
Power supply mode |
PoE |
Input voltage range [V] |
PoE: 802.3af |
Service port surge protection |
PoE port:Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
PoE OUT |
Not supported |
Maximum number of physical ports on the entire device |
GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
Atmospheric pressure [kPa] |
53kPa – 106kPa ETSI 300 019-2-3 |
Ground |
Floating ground |
USB |
Not supported |
IoT slot |
Not supported |
BLE |
Not supported |
Radio number |
2 |
Operating frequency band |
2.4GHz5GHz |
MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2Radio 1 (5 GHz): 2×2 |
Wi-Fi standard |
2.4G: 802.11b/g/n/ax5G: 802.11a/n/ac/ac Wave 2/ax |
Radio interface |
Built-in smart antennas |
Antenna gain |
2.4 GHz:3 dBi/chain (peak value)3 dBi (combined gain)5 GHz:2 dBi/chain (peak value)1 dBi (combined gain) |
Maximum transmit power |
2.4G:17 dBm/chain20 dBm (combined power)5G:17 dBm/chain20 dBm (combined power) |
Singal radio transmit power [dBm] |
2.4 GHz: 0 dBm to 17 dBm/chain5 GHz: 0 dBm to 17 dBm/chain |
MTBF [year] |
446 year |
MTTR [hour] |
2 hour |
Frequency stability [ppm] |
+/-20 |
802.3bt power supply description |
No function is limited. |
802.3at power supply description |
No function is limited. |
802.3af power supply description |
No function is limited. |
DC power supply description |
Not supported |
