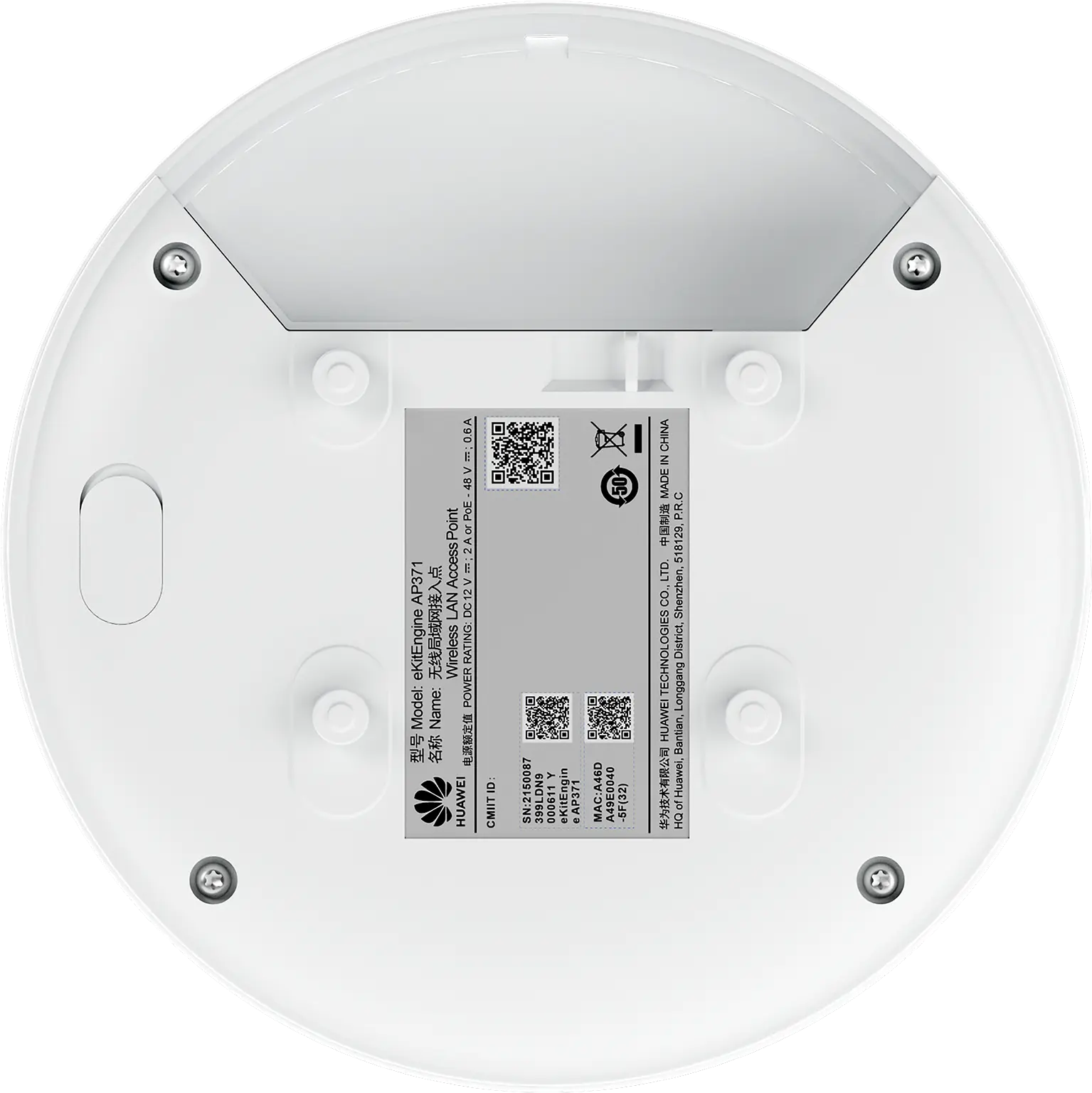

Huawei eKitEngine AP371 Access Point

Installation Type

Wall

Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)

Dimensions without packaging (H x W x D) [mm(in.)]

Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.)

Weight without packaging [kg(lb)]

0.47 kg (1.04 lb)

Weight with packaging [kg(lb)]

0.69 kg (1.52 lb)

Storage

NAND Flash 256 MB

Console port

None

Maximum power consumption [W]

13.3 (excluding USB)

Maximum heat dissipation [BTU/hour]

43.1 BTU/hour

Power supply mode

PoE

DC power adapter

Rated input voltage [V]

12 V

Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af

PoE OUT

Not supported

Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

PoE OUT

Not supported

Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing

Long-term operating temperature [°C(°F)]

–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa – 106kPa ETSI 300 019-2-3

Ground

Floating ground

USB

The USB port can supply 2.5 W or 5 W power.

USB 2.0 is supported in V600R024C10 and later versions. USB 3.0 is unavailable and will be supported through software upgrade in the future.

IoT slot

Not supported

BLE

Not supported

Radio number

2

Operating frequency band

2.4GHz

5GHz

MIMO spatial streams

Radio 0 (2.4 GHz): 2×2

Radio 1 (5 GHz): 2×2

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface

Built-in directional antennas

Antenna gain

2.4 GHz:

4 dBi/chain (peak gain)

1 dBi (combined gain)

5 GHz:

5 dBi/chain (peak gain)

3 dBi (combined gain)

BLE: 4 dBi (peak gain)

Maximum transmit power

2.4 GHz:

20 dBm/chain

23 dBm (combined power)

5 GHz:

20 dBm/chain

23 dBm (combined power)

Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain

MTBF [year]

158.215 year

MTTR [hour]

2 hour

Frequency stability [ppm]

+/-20

802.3at power supply description

No function is limited.

802.3af power supply description

The USB function is not supported. Other functions are not restricted.

DC power supply description

No function is limited.
