Antec HCG Neo 750W is the 80 PLUS Gold Full Modular
2,900EGP
High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave™ Design – synchronous rectification based on a DC-DC topology.
A server-class full-bridge LLC design.
Product Name |
HCG750 Gold |
Model Name |
HCG750 Gold |
Type |
ATX 12V 2.4 |
Modular |
Fully Modular |
Dimension (W x L x H) |
140(L)*150(W)*86(H) mm |
Warranty |
10 years |
Input Voltage |
100-240 VAC ±10% |
Input Current |
10A-5A |
Input Frequency Range |
50Hz-60Hz |
PFC |
Active PFC (>0.9 typical) |
Power Good Signal |
100-500ms |
Efficiency |
92% Typically |
Protection |
OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
Output Capacity |
750W |
Operation Temperature |
0~40°C |
Regulatory |
cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC |
Fan |
120mm FDB Fan |
Certifications |
80 Plus Gold |

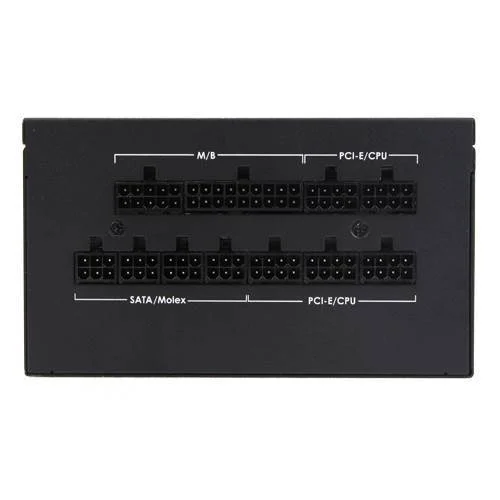

Connector |
1 x MB 24(20+4) Pin |
2 x 8(4+4) Pin EPS 12V |
|
4 x 8(6+2) Pin PCI-E |
|
8 x SATA |
|
3 x Molex |
|
1 x FDD |
|
Net Weight |
2.11Kg |
Gross Weight |
3.42Kg |
Additional information
| Brands | ANTEC |
|---|
