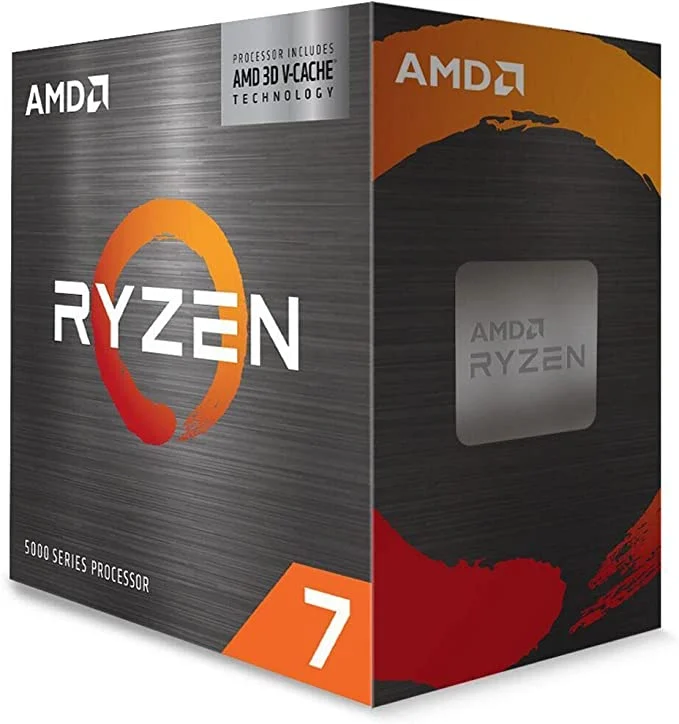

AMD Ryzen™ 7 5800X 3D Gaming Processor
9,999EGP
AMD 3D V-Cache™ Technology
Unleash even more gaming performance with 3D-stacked L3 cache
The AMD Ryzen™ 7 5800X3D is the first desktop processor with stacked L3 cache, delivering unmatched 96MB of L3 cache paired with incredibly fast cores to create the world’s fastest gaming desktop processor.
Platform |
Desktop |
Market Segment |
Enthusiast Desktop |
Product Family |
AMD Ryzen™ Processors |
Product Line |
AMD Ryzen™ 7 Desktop Processors |
AMD PRO Technologies |
No |
Consumer Use |
Yes |
Regional Availability |
Global, China, NA, EMEA, APJ, LATAM |
Former Codename |
“Vermeer” |
Architecture |
“Zen 3” |
Number of CPU Cores |
8 |
Multithreading (SMT) |
Yes |
Number of Threads |
16 |
Max. Boost Clock |
Up to 4.5GHz |
Base Clock |
3.4GHz |
L1 Cache |
512KB |
L2 Cache |
4MB |
L3 Cache |
96MB |
Default TDP |
105W |
Processor Technology for CPU Cores |
TSMC 7nm FinFET |
Processor Technology for I/O Die |
12nm (Globalfoundries) |
CPU Compute Die (CCD) Size |
74mm² |
I/O Die (IOD) Size |
125mm² |
Package Die Count |
1 |
CPU Socket |
AM4 |
Socket Count |
1P |
Supporting Chipsets |
X570
|
CPU Boost Technology |
Precision Boost 2 |
Instruction Set |
x86-64 |
Supported Extensions |
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) |
Not included |
Max. Operating Temperature (Tjmax) |
90°C |
OS Support |
Windows 11 – 64-Bit Edition
|
USB Type-C® Support |
Yes |
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
Native USB 2.0 (480Mbps) Ports |
0 |
Native SATA Ports |
2 |
PCI Express® Version |
PCIe 4.0 |
Native PCIe® Lanes (Total/Usable) |
24/20 |
Additional Usable PCIe Lanes from Motherboard |
AMD X570 – 16x Gen 4
|
NVMe Support |
Boot, RAID0, RAID1, RAID10 |
System Memory Type |
DDR4 |
Memory Channels |
2 |
Max. Memory |
128GB |
System Memory Subtype |
UDIMM |
Max Memory Speed |
2x1R – DDR4-3200
|
ECC Support |
Yes (Requires mobo support) |
Integrated Graphics |
No |
Graphics Model |
Discrete Graphics Card Required |
Supported Technologies |
AMD 3D V-Cache™ Technology
|
