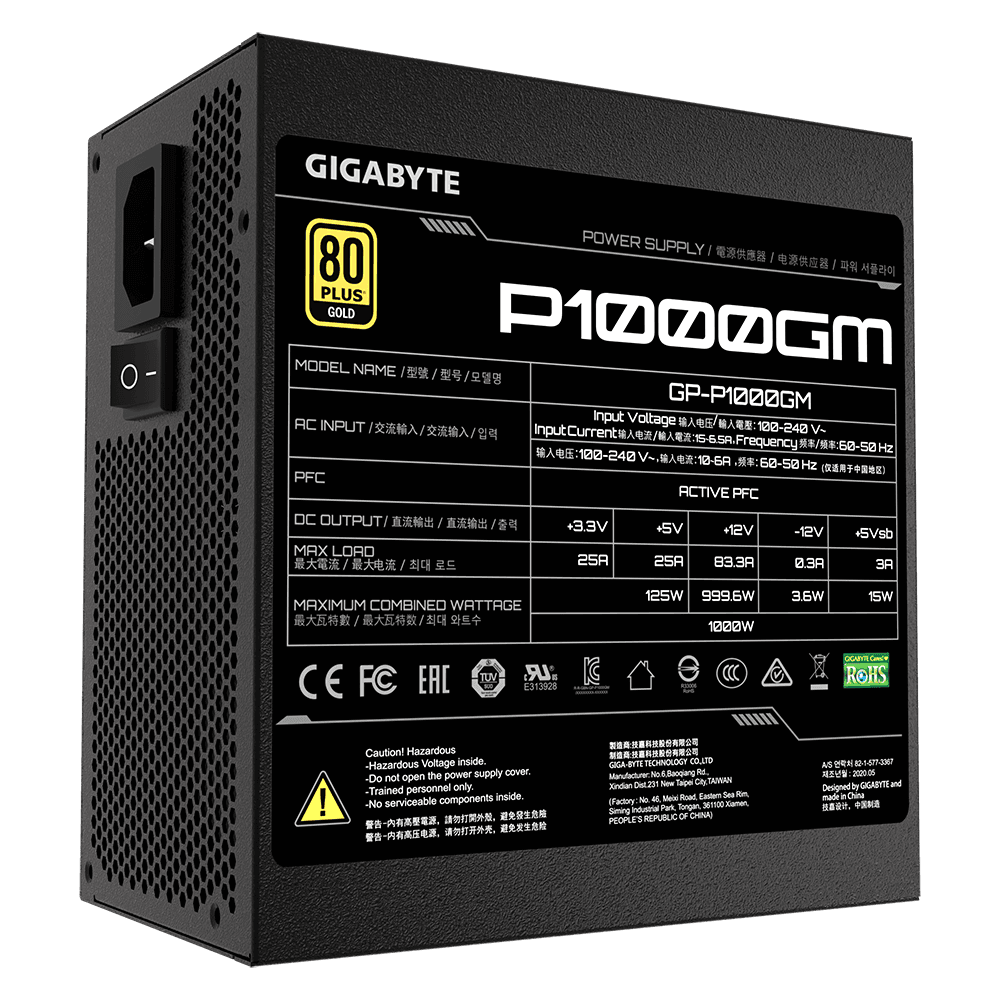

Gigabyte P1000GM 80 PLUS Gold Fully Modular Power Supply

Model

GP-P1000GM

Type

Intel Form Factor ATX 12V v2.31

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5 A , (China: 10-6 A)

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimension

150 x 140 x 86 mm

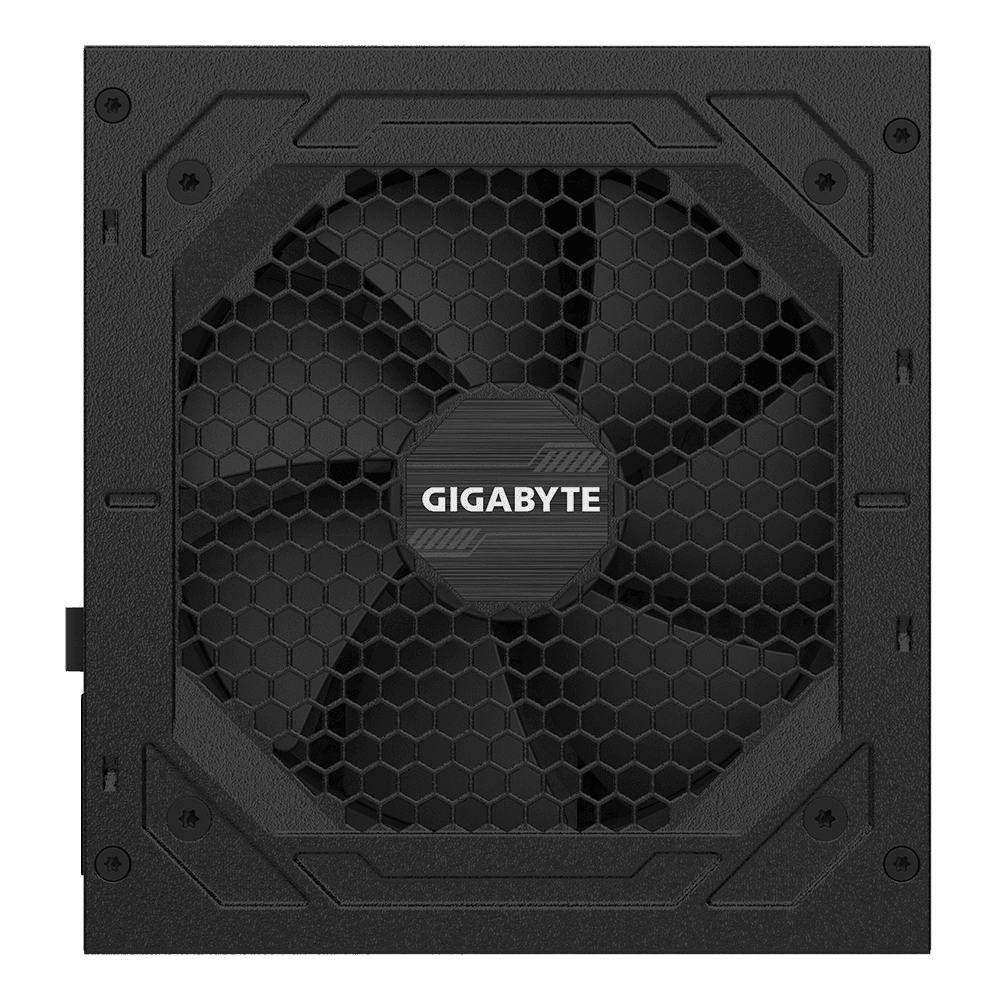

Fan Type

120mm Hydraulic Bearing ( HYB ) fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-500ms

Hold Up Time

>16ms

Cable Type

Flat, All black

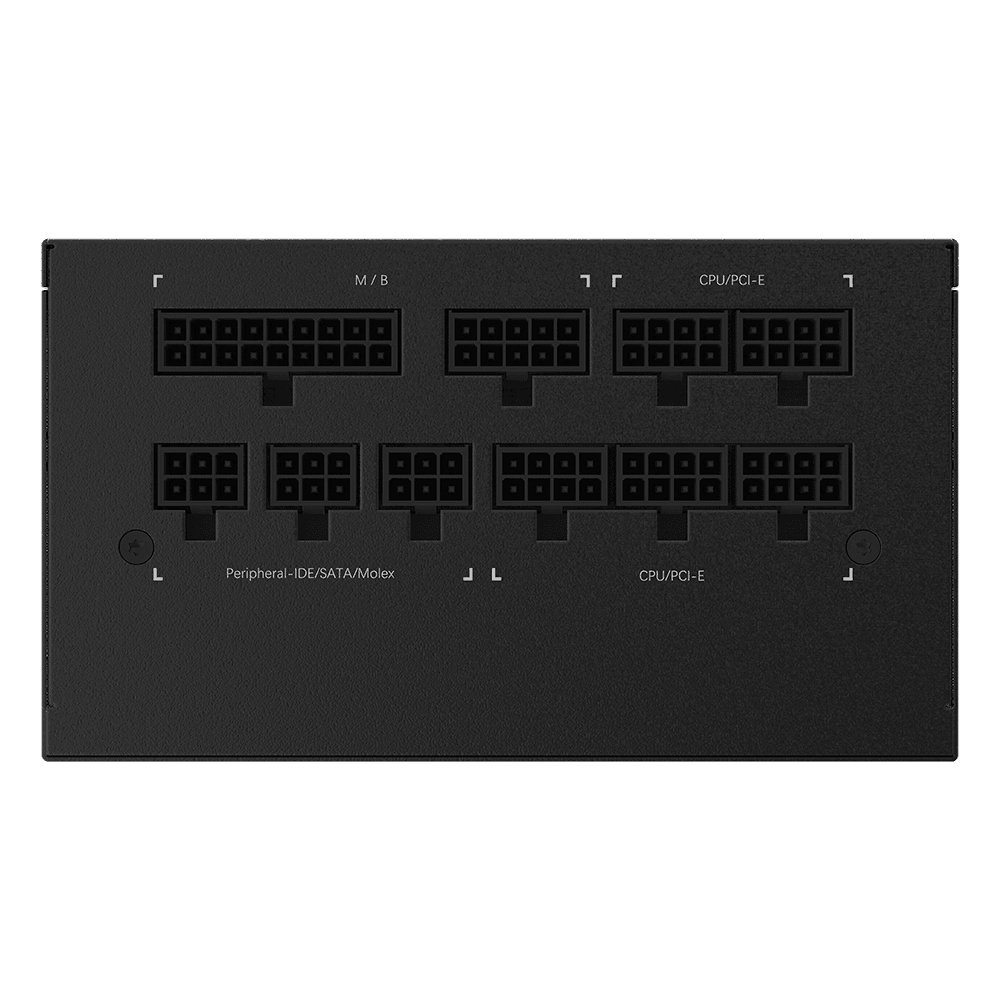

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm*2

PCI-e 6+2 Pin x 6 : 600mm+150mm*3

SATA x 8 : 600mm+150mm+150mm+150mm*2 :

4 Pin Peripheral x 3 + 4-Pin floppy x 1 :

500mm+120mm+120mm+120mm *1
