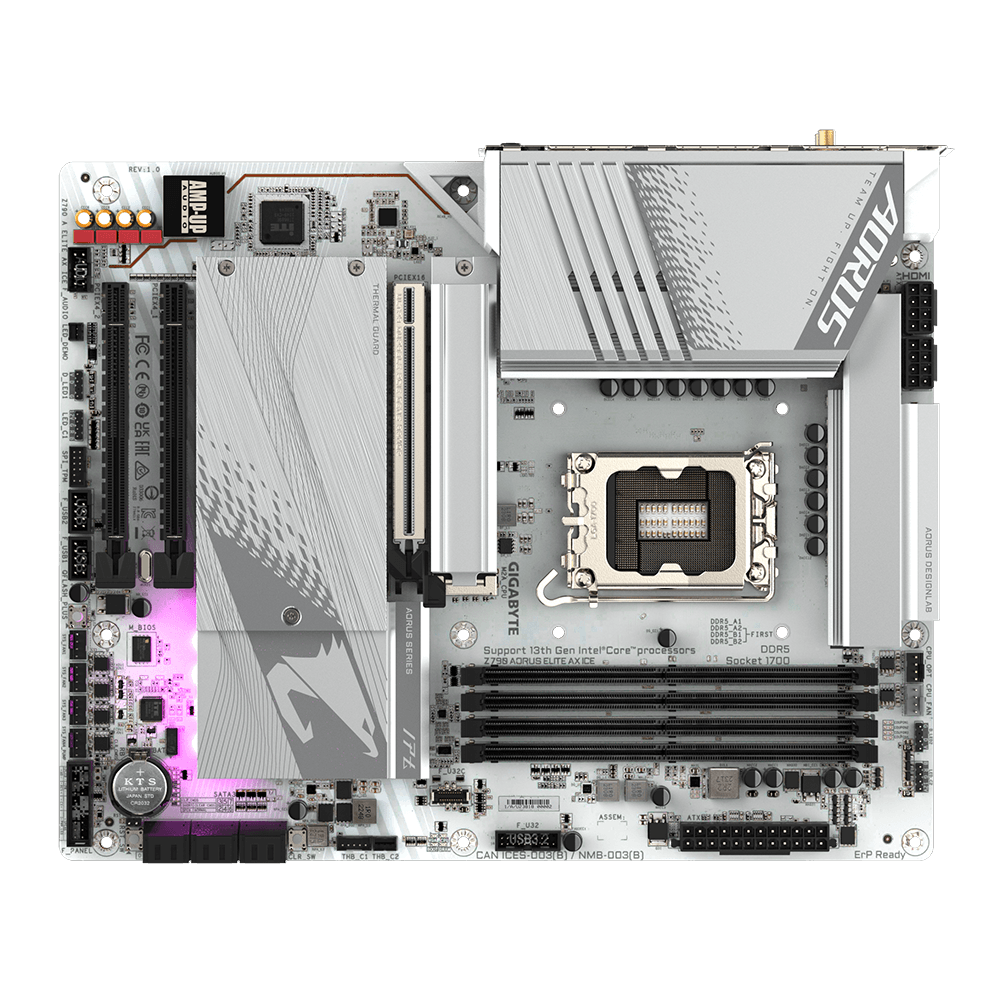

Motherboard Gigabyte Z790 AORUS ELITE AX ICE

CPU

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

2. L3 cache varies with CPU

Chipset

1. Intel® Z790 Express Chipset

Memory

1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    ports.

2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60

Audio

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel

4. Support for S/PDIF Out

LAN

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.3

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

• Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.3

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

• CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

• Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface

• CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

• Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

3. 6 x SATA 6Gb/s connectors

USB

• Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support

2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal

• USB header

1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

   Chipset+2 USB 2.0 Hubs:

3. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 2 x 8-pin ATX 12V power connectors

3. 1 x CPU fan header

4. 1 x water cooling CPU fan header

5. 3 x system fan headers

6. 1 x system fan/water cooling pump header

7. 2 x addressable LED strip headers

8. 2 x RGB LED strip headers

9. 4 x M.2 Socket 3 connectors

10. 6 x SATA 6Gb/s connectors

11. 1 x front panel header

12. 1 x front panel audio header

13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support

14. 1 x USB 3.2 Gen 1 header

15. 2 x USB 2.0/1.1 headers

16. 2 x Thunderbolt™ add-in card connectors

17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

18. 1 x reset button

19. 1 x Q-Flash Plus button

20. 1 x Clear CMOS button

21. 1 x reset jumper

22. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x USB Type-C® port, with USB 3.2 Gen

2. 2×2 support

3. 2 x USB 3.2 Gen 2 Type-A ports (red)

4. 3 x USB 3.2 Gen 1 ports

5. 4 x USB 2.0/1.1 ports

6. 2 x SMA antenna connectors (2T2R)

7. 1 x HDMI 2.0 port

8. 1 x DisplayPort

9. 1 x RJ-45 port

10. 1 x optical S/PDIF Out connector

11. 2 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control

BIOS

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
