Motherboard Gigabyte B650M AORUS ELITE AX (rev. 1.0)

CPU

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

Chipset

1. AMD B650

Memory

1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor:

1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Audio

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel

4. Support for S/PDIF Out

LAN

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.2

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

• Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.3

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

• CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

• Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

• CPU:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)

2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

• Chipset:

1. 4 x SATA 6Gb/s connectors

USB

• CPU:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

• CPU + USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports on the back panel

• Chipset:

1. 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

3. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Chipset+USB 3.2 Gen 1 Hub:

1. 4 x USB 3.2 Gen 1 ports on the back pane

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x CPU fan header

4. 1 x water cooling CPU fan header

5. 3 x system fan headers

6. 1 x system fan/water cooling pump header

7. 2 x addressable LED strip headers

8. 2 x RGB LED strip headers

9. 1 x CPU cooler LED strip/RGB LED strip header

10. 2 x M.2 Socket 3 connectors

11. 4 x SATA 6Gb/s connectors

12. 1 x front panel header

13. 1 x front panel audio header

14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

15. 1 x USB 3.2 Gen 1 header

16. 2 x USB 2.0/1.1 headers

17. 1 x serial port header

18. 1 x THB_U4 add-in card connector

19. 1 x Trusted Platform Module header (For

20. the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

21. 1 x reset button

22. 1 x reset jumper

23. 1 x Clear CMOS jumper

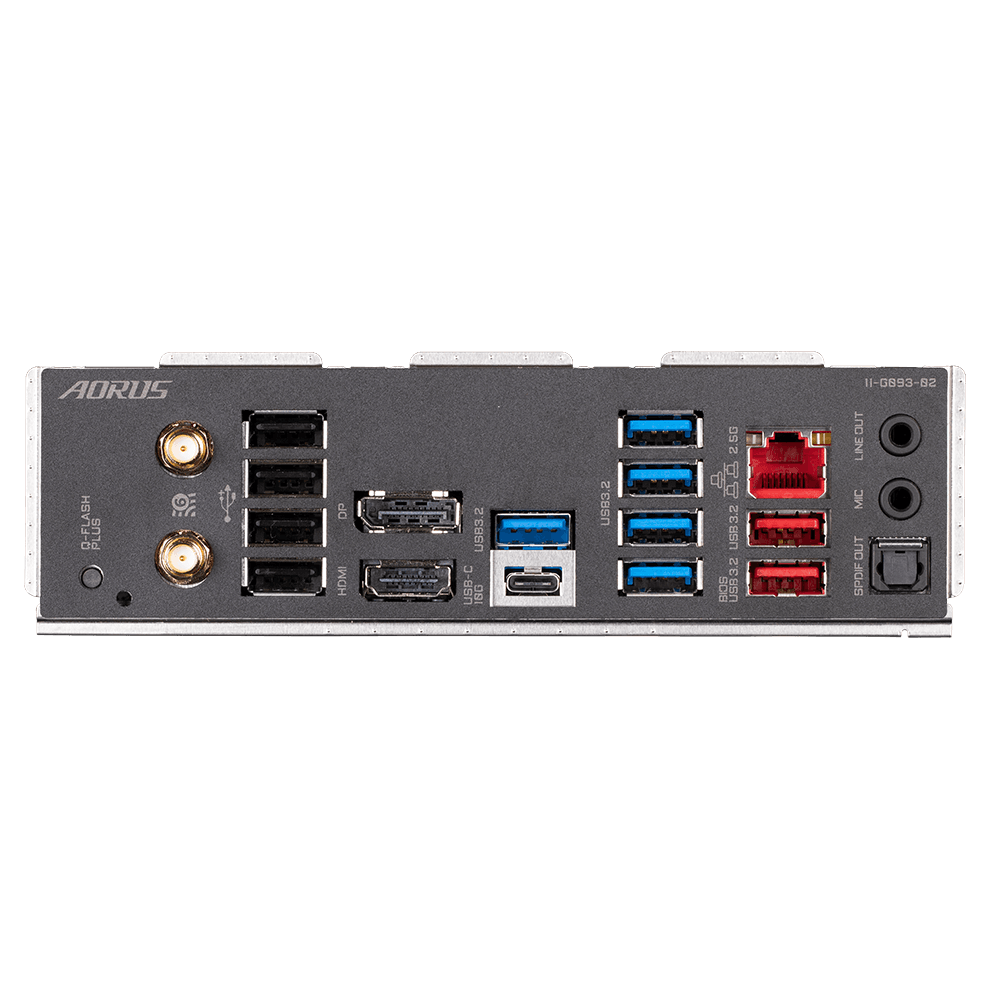

Back Panel Connectors

1. 1 x Q-Flash Plus button

2. 2 x SMA antenna connectors (2T2R)

3. 1 x DisplayPort

4. 1 x HDMI port

5. 1 x USB Type-C® port, with USB 3.2 Gen 2 support

6. 2 x USB 3.2 Gen 2 Type-A ports (red)

7. 5 x USB 3.2 Gen 1 ports

8. 4 x USB 2.0/1.1 ports

9. 1 x RJ-45 port

10. 1 x optical S/PDIF Out connector

11. 2 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

BIOS

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm
