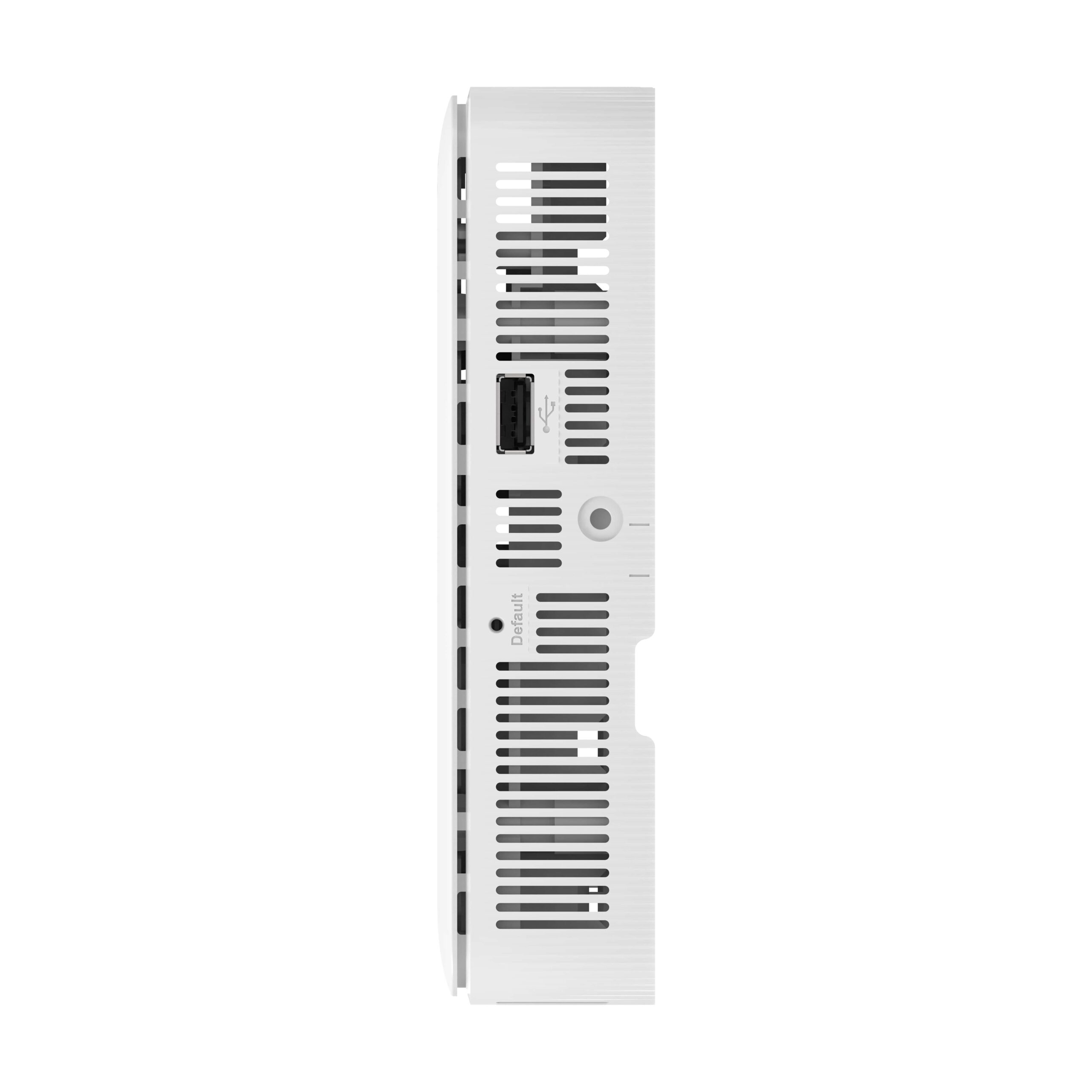

Huawei AP263 Access Point
4,399EGP
- Wi-Fi 6 technology
- 5GHz throughput up to 2400Mbps
- 2.4GHz throughput up to 575Mbps
- Power supply 802.3af POE or 12V DC
- WPA3 security
- USB 2.0
- 2x GE port
Installation Type |
Desk
|
Dimensions without packaging (H x W x D) [mm(in.)] |
160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] |
75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) |
Weight without packaging [kg(lb)] |
0.320 kg (0.705 lb) |
Weight with packaging [kg(lb)] |
0.542 kg (1.195 lb) |
Storage |
NAND Flash 256 MB |
Console port |
BLE console |
Maximum power consumption [W] |
12 W |
Maximum heat dissipation [BTU/hour] |
41 BTU/hour |
Power supply mode |
PoE
|
Rated input voltage [V] |
12 V |
Input voltage range [V] |
12±10%PoE: 802.3at/af |
Service port surge protection |
PoE port: |
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B |
|
Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
|
PoE OUT |
Not supported |
Maximum number of physical ports on the entire device |
GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
Atmospheric pressure [kPa] |
53kPa – 106kPa ETSI 300 019-2-3 |
Ground |
Floating ground |
USB |
USB 2.0 (supporting 5 W power supply) |
IoT slot |
Not supported |
BLE |
BLE5.0 |
Radio number |
2 |
Operating frequency band |
2.4GHz
|
MIMO spatial streams |
Radio 0 (2.4 GHz): 2×2Radio 1 (5 GHz): 2×2 |
Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax5 GHz: 802.11a/n/ac/ac Wave 2/ax |
Radio interface |
Built-in smart antennas |
Antenna gain |
2.4G:2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi |
Maximum transmit power |
2.4G:20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm |
Singal radio transmit power [dBm] |
2.4G: -10 dBm to 20 dBm/chain |
5G: -10 dBm to 20 dBm/chain |
|
MTBF [year] |
69.7 year |
MTTR [hour] |
0.5 hour |
Frequency stability [ppm] |
+/-20 |
802.3at power supply description |
No function is limited. |
802.3af power supply description |
The USB function is unavailable. |
DC power supply description |
No function is limited. |
